Introduction

This is the smallest and fastest polymorphic JSON serializer, smallest because it's only 18kb when compiled, fastest because most of the time it is (see performance test section) and polymorphic because it can serialize and deserialize the following situation correctly at run-time with what ever object you throw at it:

class animal { public string Name { get; set;} }
class cat: animal { public int legs { get; set;} }
class dog : animal { public bool tail { get; set;} }
class zoo { public List<animal> animals { get; set;} }

var zoo1 = new zoo();

zoo1.animals = new List<animal>();
zoo1.animals.Add(new cat());
zoo1.animals.Add(new dog());

This is a very important point because it simplifies your coding immensely and is a cornerstone of object orientated programming, strangely few serializers handle this situation, even the  XmlSerializer in .NET  doesn't do this and you have to jump through hoops to get it to work. Also this is a must if you want to replace the BinaryFormatter serializer which what most transport protocols use in applications and can handle any .NET object structure (see my WCF Killer article).

The What and Why of JSON

JSON (Java Script Object Notation) is a text or human readable format invented by Douglas Crockford around 1999 primarily as a data exchange format for web applications (see www.JSON.org). The benefits of which are ( in regards to XML which was used before):

• Structured data format like XML
• High signal to noise ratio in other words it does away with extra characters which are not conclusive to the data ( angle brackets and slashes in XML)
• Compact data format
• Simple parsing rules which makes the processing of data easy and fast

So its good for the following scenarios:

• Data exchange between same or different platforms like Java, .NET services over the wire.
• Data storage: MongoDB (www.mongodb.org) uses JSON as an internal storage format.

Features of this implementation

• Just 3 classes + 2 helpers : 883 lines of code
• JSON standard compliant with the following additions
• "$type" is used to denote object type information [ Json.NET does this as well ].
• "$schema" is used to denote the dataset schema information
• Works on .NET 2.0+ : some implementations in the list of alternatives below require at least .NET 3.5
• Extremely small size : 18kb when compiled
• Blazingly fast (see the performance tests section)
• Can dynamically create types
• Handles Guid, Dataset, Dictionary, Hashtable and Generic lists
• Handles Nullable types
• Handles byte arrays as base64 strings
• Handles polymorphic collections of objects
• Thread safe

Limitations

• Currently can't deserialize value type array properties (e.g. int[] char[] etc.)

What's out there

In this section I will discuss some of the JSON alternatives that I have personally used. Although I can't say it is a comprehensive list, it does however showcase the best of what is out there.

XML

If you are using XML, then don't. It's too slow and bloated, it does deserve an honorable mention as being the first thing everyone uses, but seriously don't. It's about 50 times slower than the slowest JSON in this list. The upside is that you can convert to and from JSON easily.

BinaryFormatter

Probably the most robust format for computer to computer data transfer. It has a pretty good performance although some implementation here beat it.

Json.NET

The most referenced JSON serializer for the .NET framework is Json.NET from (http://JSON.codeplex.com/) and the blog site (http://james.newtonking.com/pages/JSON-net.aspx). It was the first JSON implementation I used in my own applications.

LitJSON

I had to look around a lot to find this gem (http://litjson.sourceforge.NET/), which is still at version 0.5 since 2007. This was what I was using before my own implementation and it replaced the previous JSON serializer which was Json.NET. Admittedly I had to change the original to fit the requirements stated above.

ServiceStack Serializer

An amazingly fast JSON serializer from Demis Bellot found at (http://www.servicestack.NET/mythz_blog/?p=344). The serializer speed is astonishing, although it does not support what is needed from the serializer. I have included it here as a measure of performance.

Using the code

To use the code do the following:

// to serialize an object to string
string jsonText = fastJSON.JSON.Instance.ToJSON(c);

// to deserialize a string to an object
var newobj = fastJSON.JSON.Instance.ToObject(jsonText);

The main class is JSON which is implemented as a singleton so it can cache type and property information for speed.

Performance Tests

All test were run on the following computer:

• AMD K625 1.5Ghz Processor
• 4Gb Ram DDR2
• Windows 7 Home Premium 64bit
• Windows Rating of 3.9

The tests were conducted under three different .NET compilation versions

• .NET 3.5
• .NET 4 with processor type set to auto
• .NET 4 with processor type set to x86

The Excel screen shots below are the results of these test with the following descriptions:

• The numbers are elapsed time in milliseconds.
• The more red the background the slower the times
• The more green the background the faster the times.
• 5 tests were conducted for each serializer.
• The "AVG" column is the average for the last 4 tests excluding the first test which is basically the serializer setting up its internal caching structures, and the times are off.
• The "min" row is the minimum numbers in the respective columns below.
• The Json.NET serializer was tested with two version of 3.5r6 and 4.0r1 which is the current one.
• "bin" is the BinaryFormatter tests which for reference.
• The test structure is the code below which is a 5 time loop with an inner processing of 1000 objects.
• Some data types were removed from the test data structure so all serializers could work.

The test code template

The following is the basic test code template, as you can see it is a loop of 5 tests of what we want to test each done count time (1000 times). The elapsed time is written out to the console with tab formatting so you can pipe it to a file for easier viewing in an Excel spreadsheet.

int count = 1000;
private static void fastjson_serialize()
{
	Console.WriteLine();
	Console.Write("fastjson serialize");
	for (int tests = 0; tests < 5; tests++)
	{
		DateTime st = DateTime.Now;
		colclass c;
		string jsonText = null;
		c = CreateObject();
		for (int i = 0; i < count; i++)
		{
			jsonText = fastJSON.JSON.Instance.ToJSON(c);
		}
		Console.Write("\t" + DateTime.Now.Subtract(st).TotalMilliseconds + "\t");
	}
}

The test data structure

The test data are the following classes which show the polymorphic nature we want to test. The "colclass" is a collection of these data structures. In the attached source files more exotic data structures like Hashtables, Dictionaries, Datasets etc. are included.

[Serializable()]
public class baseclass
{
    public string Name { get; set; }
    public string Code { get; set; }
}

[Serializable()]
public class class1 : baseclass
{
    public Guid guid { get; set; }
}

[Serializable()]
public class class2 : baseclass
{
    public string description { get; set; }
}

[Serializable()]
public class colclass
{
    public colclass()
    {
        items = new
List<baseclass>();
        date = DateTime.Now;
        multilineString = @"
        AJKLjaskljLA
   ahjksjkAHJKS
   AJKHSKJhaksjhAHSJKa
   AJKSHajkhsjkHKSJKash
   ASJKhasjkKASJKahsjk
        ";
        gggg = Guid.NewGuid();
        //hash = new Hashtable();
        isNew = true;
        done= true;
    }
    public bool done { get; set; }
    public DateTime date {get; set;}
    //public DataSet ds { get; set; }
    public string multilineString { get; set; }
    public List<baseclass> items { get; set; }
    public Guid gggg {get; set;}
    public decimal? dec {get; set;}
    public bool isNew { get; set; }
    //public Hashtable hash { get; set; }

}

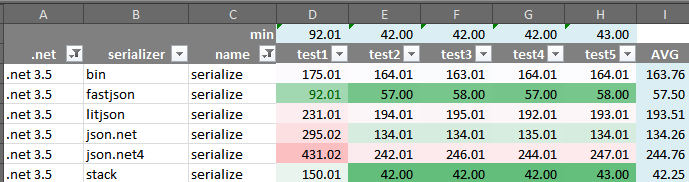

.NET 3.5 Serialize

• fastJSON is second place in this test by a margin of nearly 35% slower than Stacks.
• fastJSON is nearly 2.9x faster than binary formatter.
• Json.NET is nearly 1.9x slower in the new version 4.0r1 against its previous version of 3.5r6
• Json.NET v3.5r6 is nearly 20% faster than binary formatter.

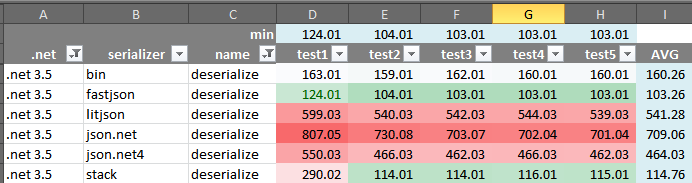

.NET 3.5 Deserialize

• fastJSON is first place in this test to Stacks by a margin of 10%.
• fastJSON is nearly 4x faster than nearest other JSON.
• Json.NET is nearly 1.5x faster in version 4.0r1 than its previous version of 3.5r6

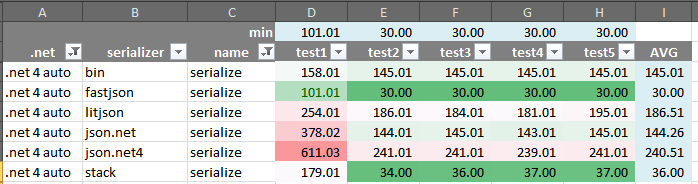

.NET 4 Auto Serialize

• fastJSON is first place in this test by a margin of nearly 20% against Stacks.
• fastJSON is nearly 4.9x faster than binary formatter.
• Json.NET v3.5r6 is on par with binary formatter.

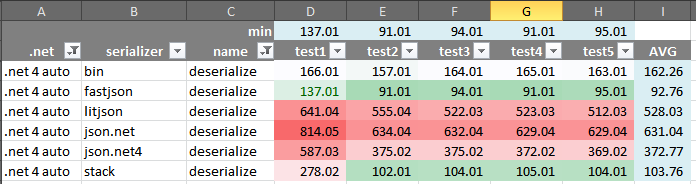

.NET 4 Auto Deserialize

• fastJSON is first place by a margin of 11%.
• fastJSON is 1.7x faster than binary formatter.
• Json.NET v4 1.5x faster than its previous version.

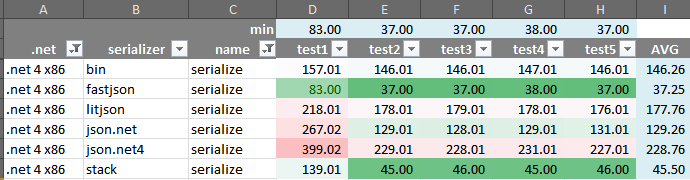

.NET 4 x86 Serialize

• fastJSON is first place in this test by a margin of nearly 21% against Stacks.
• fastJSON is 4x faster than binary formatter.
• Json.NET v3.5r6 1.7x faster than the previuos version.

.NET 4 x86 Deserialize

• fastJSON is first place by a margin of 5% against Stacks.
• fastJSON is 1.7x faster than binary formatter which is third.

Exotic data type tests

In this section we will see the performance results for exotic data types like datasets, hash tables, dictionaries, etc.. The comparison is between fastJSON and the BinaryFormatter as most of the other serializers can't handle these data types. These include the following:

• Datasets
• Nullable types
• Hashtables
• Dictionaries

• fastJSON is 5x faster than BinaryFormatter in serialization
• fastJSON is 20% faster than BinaryFormatter in deserialization
• Datasets are performance killers by a factor of 10

Performance Conclusions

• fastJSON is faster in all test except the when running the serializer under .NET 3.5 for which Stacks is faster by only 35% (note must be made that Stacks is not polymorphic and can't handle all types so it is not outputting data correctly within the tests).
• .NET 4 is faster than .NET 3.5 by around 15% in these test except for the fastJSON serializer which is 90% faster..
• You can replace BinaryFormatter with fastJSON with a huge performance boost ( this lean way lends it self to compression techniques on the text output also).
• Start up costs for fastJSON is on average 2x faster than Stacks and consistently faster than everyone else.

Points of Interest

I did a lot of performance tuning with a profiler and here are my results:

• Always use a StringBuilder and never strings concats.
• Never do the following stringbuilder.append("string1 + "string2") because it kills performance, replace it with two stringbuilder appends. This point blew my mind and was 50% faster in my tests with the profiler.
• Never give the stringbuilder a capacity value to start with e.g. var stringbuilder = new StringBuilder(4096); . Strange but it is faster without it.
• I tried replacing the StringBuiler with a MemoryStream but it was too slow (100% slower).
• The simplest and the most direct way is probably the fastest as well, case in point reading values as opposed to lexer parser implementations.
• Always use cached reflection properties on objects.

History

• Initial Release : 2011/02/20
• Update v1.1 : 26% performance boost on dataset deserialization, corrected ServiceStack name
