Introduction

Some controls in ASP.NET like the Repeater control require templates to display data. These templates can be applied either statically or dynamically.

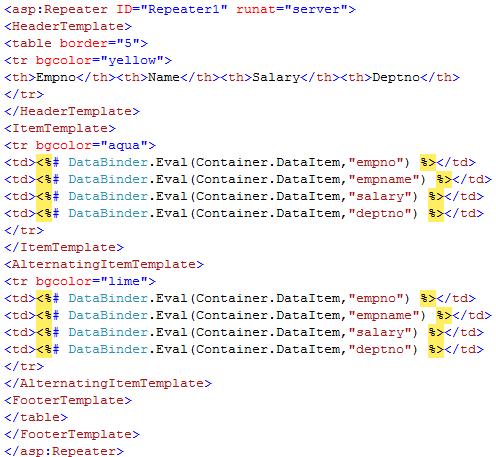

Static templates require editing the source code of the ASP.NET control. For example:

On the other hand, dynamic templates are applied at runtime and do not require modifying the source code of the Repeater control.

There are advantages and disadvantages of both approaches. Static templates are faster since they do not incur overhead at runtime but are less flexible, whereas dynamic templates are initially slow but provide more flexibility to the developer.

Background

A Repeater control is a DataBound control in ASP.NET which can be used to display data from a back end database table. But it does not have its own default layout. In order to provide layout to the Repeater control, templates must be defined for it.

The most common way of creating templates for a Repeater control is to modify the source code of the Repeater. However templates can also be created programmatically as is demonstrated by this article.

Using the Code

To create dynamic templates, you must create a class that implements the ITemplate interface as follows:

public class MyTemplate : ITemplate
{
   ListItemType type;	// The type of template (Header, Footer, Item, AlternatingItem
   LiteralControl lc; 	// To hold the template code
   DataSet ds; 		// To hold the data to be bound
   static int ctr; 	// To track current row.
   public MyTemplate(ListItemType type, DataSet ds)
   {
      this.type = type;
      this.ds = ds;
      ctr = 0;
   }

Using the constructor we initialize a ListItemType and DataSet instance variable. The ListItemType variable represents the current template while the DataSet holds the data to be displayed on the Repeater control.

We have to implement the InstantiateIn function passing a Control object as a parameter. Within the InstantiateIn method, we must check the current template and accordingly store the relevant HTML code in a LiteralControl.

Finally, we must add the literal control to the controls collection of the Repeater:

public void InstantiateIn(Control container)
{
    switch (type)				// Check the template type
    {
        case ListItemType.Header:			// Header Template
            lc = new LiteralControl("<table border='5'><
		tr bgcolor='red'><th>Empno</th><th>Name</th></tr>");
            break;
        case ListItemType.Item:			// Item Template
            lc = new LiteralControl("<tr bgcolor='yellow'><
		td>" + ds.Tables["emp"].Rows[ctr]["empno"] + "</td><td>" +
		ds.Tables["emp"].Rows[ctr]["empname"] + "</td></tr>");
             ctr++;
            break;
        case ListItemType.AlternatingItem:		// AlternatingItem Template
            lc = new LiteralControl("<tr bgcolor='lime'><td>" +
		ds.Tables["emp"].Rows[ctr]["empno"] + "</td><td>" +
		ds.Tables["emp"].Rows[ctr]["empname"] + "</td></tr>");
            ctr++;
            break;
        case ListItemType.Footer:			// Footer Template
            lc = new LiteralControl("</table>");
            ctr = 0;
            break;
    }
    container.Controls.Add(lc);
}

Note: For simplicity, I have created ItemTemplate and AlternatingItemTemplate for only two columns, i.e., empno and empname.

In our ASP.NET page in the Page_Load event, we implement DataBinding to bind data from the data source to the Repeater control and apply the templates:

Data Binding

public partial class _Default : System.Web.UI.Page
{
    protected void Page_Load(object sender, EventArgs e)
    {
        SqlConnection con = new SqlConnection();		// Creating a connection
        con.ConnectionString = @"Data Source=servername;Initial Catalog=databasename;
	  User ID=username;Password=password";		// SQL Connection String
							// to connect to database
        SqlCommand cmd = new SqlCommand();		// Creating a command
        cmd.Connection = con;
        cmd.CommandType = CommandType.Text;
        cmd.CommandText = "select * from emp";
        SqlDataAdapter da = new SqlDataAdapter();	// Creating a data adapter.
        da.SelectCommand = cmd;
        DataSet ds = new DataSet();			// Creating a DataSet
        con.Open();
        da.Fill(ds, "emp");
        con.Close();

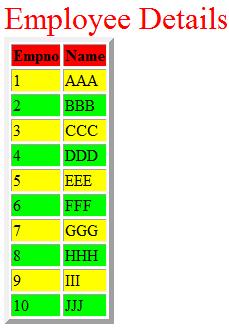

Applying Templates

Repeater1.DataSource = ds.Tables["emp"];
Repeater1.HeaderTemplate = new MyTemplate(ListItemType.Header, null);
Repeater1.ItemTemplate = new MyTemplate(ListItemType.Item, ds);
Repeater1.AlternatingItemTemplate = new MyTemplate(ListItemType.AlternatingItem, ds);
Repeater1.FooterTemplate = new MyTemplate(ListItemType.Footer, null);
Repeater1.DataBind();

Points of Interest

Initially, I was unable to figure out how to display data from a database, then I realized that I can pass a DataSet parameter to the constructor of the inherited template class and retrieve the data table, data row and data column and use them in ItemTemplate and AlternatingItemTemplate.

History

• 8^th May, 2011: Initial post
